  • RAR-7200

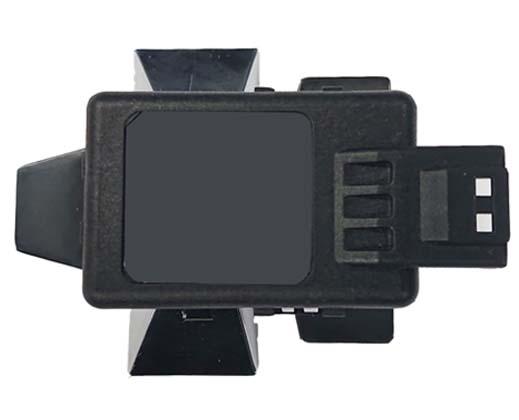

    RAR-7200
FEATURE
  • 79 GHz Radar
  • 3-in-1 Function: Blind Spot Detection(BSD)+Parking Assist System(PAS)+Lane Change Alert(LCA)
  • 180゜FOV with ONE single radar
  • Small, light and easy installation
  • IP67 Waterproof
  • Meet Automotive Standard: AEC-Q100
  • Follow ISO Standards:
    ISO-17387 Type I (BSD/LCA)
    ISO-17386 (PAS)
  • Competitive Pricing


APPLICATIONS

  • Passenger/ Commercial  Car

  • Surrounding Detection

  • Height Limit Detection

Specification
Frequency 77-81GHz
Structure Radar + ECU box
Steering wheel control Support
FOV Azimuth 180゜
Supply Voltage 9 VDC to 36 VDC
Available for 12 VDC system and 24 VDC system
Power Consumption < 4.0W
Interface CAN/UART, Buzzer/LED, Reverse/Left/Right/Illumination signal & Odometer
Waterproof IP67
Operating Temperature -40℃ ~ 85℃
Storage Temperature -40℃ ~ 85℃
Weight Radar 45.2g & ECU 65.4g


The 79 GHz RAR-7200 radar, in addition to itsblind spot radar detection capabilities, can also be applied to advancedapplications like vehicle surrounding detection. Unlike other industrysolutions for surrounding detection, such as cameras, ultrasonic sensors, etc.,which may require the installation of multiple sensors, the RoyalTek RAR-7200boasts an exclusive patent of "single radar FOV 180 degrees." Itmeans that only four radars need to be installed to achieve vehicle surroundingdetection, providing comprehensive sensing effects. This technology can beapplied to industrial vehicles such as forklifts, street sweepers, agriculturalvehicles, and autonomous vehicles, with detection ranges customizable accordingto different vehicle types, offering a more complete safety assurance.


-------------------------------------------------------------------------------------------------------------------------------




-------------------------------------------------------------------------------------------------------------------------------
